Name: STS 14W Residential Solar Energy Systems For 19''TV And 32'' TV
Brand: Stron
SKU: ST188

Home Products Pay As You Go Solar System

STS 14W Residential Solar Energy Systems For 19''TV And 32'' TV

Product Details:

Place of Origin:	China
Brand Name:	Stron
Certification:	Lighting Global
Model Number:	ST188

Payment & Shipping Terms:

Minimum Order Quantity:	10 set
Price:	Negotiable
Packaging Details:	Cartons
Delivery Time:	15 days
Payment Terms:	T/T, Western Union, L/C, D/A, D/P, MoneyGram
Supply Ability:	3000sets/month

Contact Now

Detailed Product Description

Specification:	Mini	Application:	Home
Power:	14W	Size:	19'' And 32''
Interface:	HDMI	Feature:	LCD
Satellite Antenna:	Support	Function:	Entertainment
Color:	Black	Resolution:	HD
High Light:	14W residential solar energy systems , STS residential solar energy systems , 14W prepaid solar system

Paygo Solar Home System For 19''TV And 32'' TV

Product introduction

Stron Power focus on the development,manufacture and sales of smart pay as you go solar home system with intelligent data collection.

Africa has high cost of grid electricity and big demand of solar energy. This provides a great opportunity to provide sustainable power. Stron solar lighting systems provide a very best solution for residential area where they can afford the traditional electricity.

Main Features

1. Meet the Lighting Global quality standard;

2. STS(standard transfer specification) compliant;

3. Stronpay vending software can be provided for free;

4. Operating by inputting 20 digits Token;

5. Batteries are able to be full recharged within 4 hours;

6. Easy to install, top-up and run;

7. High quality with 2 years warranty.

STS 14W Residential Solar Energy Systems For 19''TV And 32'' TV 0

Controller Unit

STS 14W Residential Solar Energy Systems For 19''TV And 32'' TV 1

System indicator lights	Indicators for Charging, Credit and Battery with Red/Green signal On/off indicator for the controller
Top-up Keypad	0-9 keypad , delete button and Enter button
Outputs	4×LED light outputs, 2×USB output
Inputs	1×PV module input
1×PV module input	Overvoltage, reverse voltage and short circuit protection

Set parameters

Components	Parameter
Solar Panel	50W 12V Polycrystalline solar panel with 5m cable
Solar Controller	Electronic controller include 12Ah LiFePo4 battery

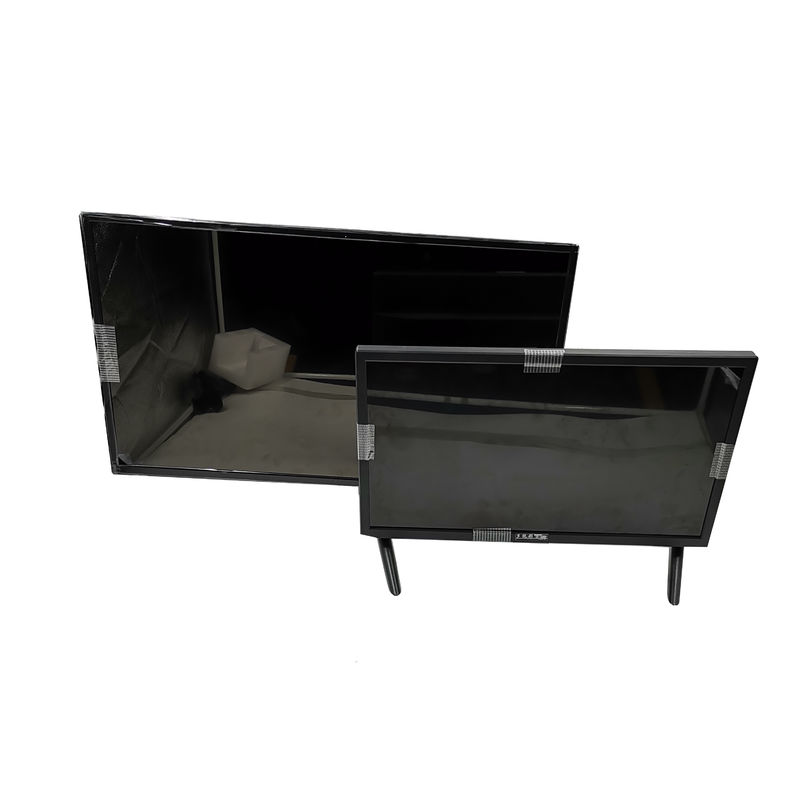

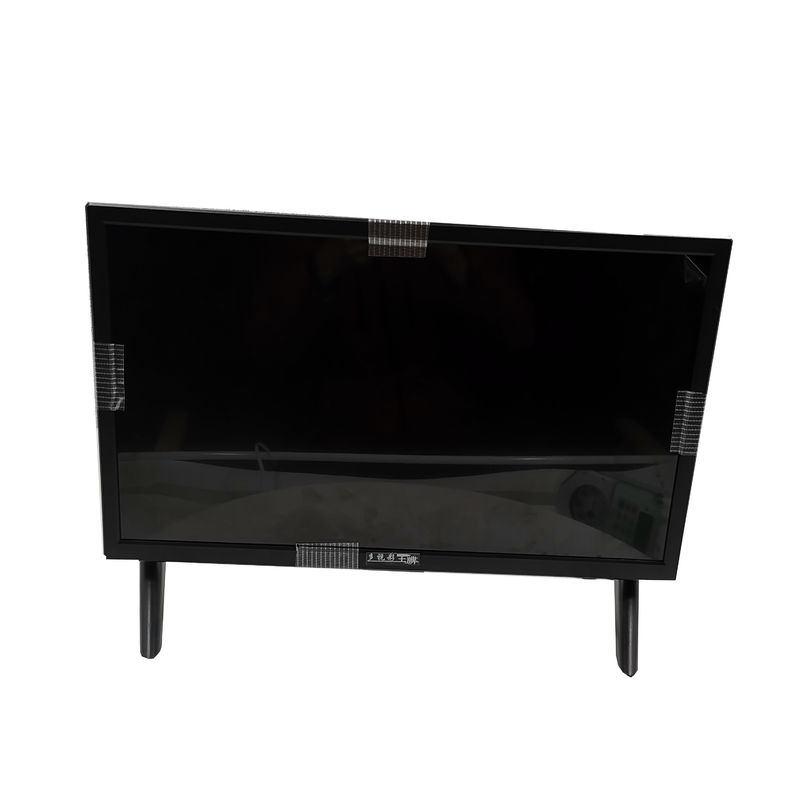

DC TV	19”LED HD digital 14W TV, Supports both satellite dish and antenna
LED Light	4*3W/5V LED lamps with 5M cables
USB Phone Charger	4-in-1 Phone Charging Cable
Stronpay Vending Software	For free if order amount ever 50 pieces

Battery charging Time: 3.5 Hours under sufficient sunlight.

Seperately Running Time:

☀ LED Light: 51.2 hours for one light

12.8 hours for three lights

☀ DC TV: 9.6 hours with full battery For 19‘’TV

Stronpay Vending Software

Stronpay Vending Software is a Window-based vending management system. It consists of Stronpay management server(CMS) and Stronpay management Client(CMC)

CMC provides administrative operations, such as customer and meter registration, vending, report. It can be run on an independent device in form of standalone software. Multiple clients can be connected to a single management server(CMS). CMC also allows multiple operators and access to system which is configured by the administrator.

Features and benefits of CMS

☀ Scalable customer and meter installation bases.
☀ Can interface with various system.
☀ Can set tariffs and clearance level for CMC.
☀ Support third party payment platform such as M-PESA,MTN, Airtel and online banking.
☀ User friendly and easy operation.
☀ Customer&meter management.
☀ Vending and statistic report.
☀ Multiple-operator and permission to access.
☀ Easy installation and zero maintenance .
