STS 10V/M Smart Prepaid Electricity Meter , 5A Household Electricity Meter

STS 10V/M Smart Prepaid Electricity Meter , 5A Household Electricity Meter

  • STS 10V/M Smart Prepaid Electricity Meter , 5A Household Electricity Meter
  • STS 10V/M Smart Prepaid Electricity Meter , 5A Household Electricity Meter
STS 10V/M Smart Prepaid Electricity Meter , 5A Household Electricity Meter
Product Details:
Place of Origin: Hunan
Brand Name: Stron
Certification: STS
Model Number: STE18-D
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiable
Delivery Time: 14 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 set per month
Contact Now
Detailed Product Description
Material: Plastic Certification: STS
Phase: Single Phase Payment: Prepay
Type: Dinrail Nominal Voltage: 230v
Brand: Stron
High Light:

STS 5A smart prepaid electricity meter

,

10V/m smart prepaid electricity meter

,

5A household electricity meter

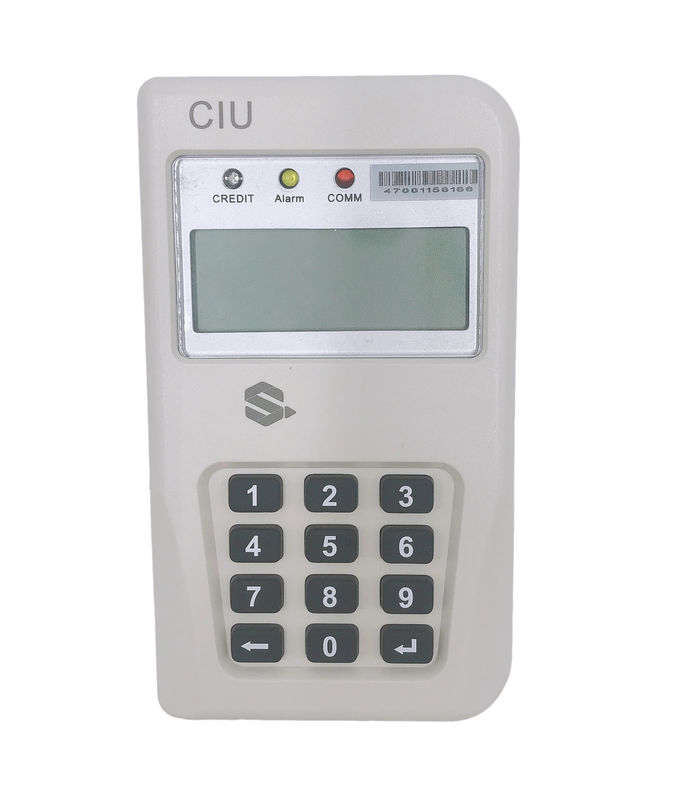

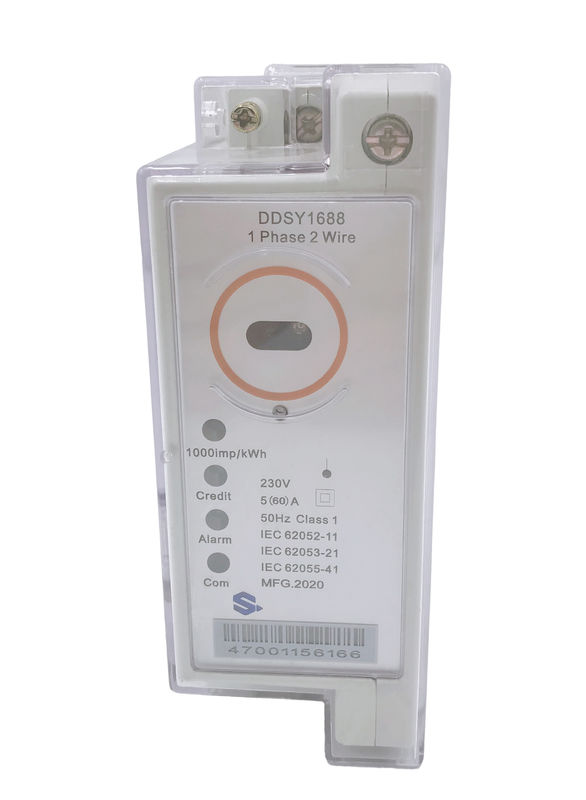

STS Prepay Online System Dinrail Mount Single Phase Split Energy Meter with CIU



basic function



Feature details



Prepaid STS standard, input 20 token recharge, no credit or default balance level



The low credit alarm value can be set by entering the corresponding token



Pre-payment and post-payment switching meters can be switched to prepayment mode or post payment mode



If the current power exceeds the threshold, the load control menu can be programmed as load control threshold. The meter will cut off the user's load.



The event log table an record tamper events, open events, purchase events and tokens.



It can test LCD and relay, and report test results directly



The anti fraud function meter will automatically close the valve and open the cover after detecting the magnetic field



According to the need, the instrument can communicate with AMI system through lorarf or PLC



Information query users can query credit balance, total purchase amount, total credit amount and other data by entering short code





Electric Magnetic Compatibility

AC Insulation Strength 4kV at 50Hz during 1min
Impulse voltage 1.2/50 us mains connections 8kV

Electrostatic Discharges



Contact discharge 8kV
Air discharge 16kV
Electromagnetic RF Field 27MHz-500MHz 10V/m
100KHz-1GHz 30V/m
Fast transient burst test 4kV
Protection Class II





Nominal Voltage 230V
Working Voltage Range 70%~120%Un
Nominal Frequency 50-60Hz
Basic Current (Ib) 5A
Maximum Current (Imax) 80A
Starting Current (Ist) 20mA
Active Energy Constant 1000imp/kWh
Measurement Accuracy Class 1.0
Power Consumption in Voltage Circuit <2W <8VA
Power Consumption in Current Circuit <1VA
