Place of Origin:
China
Brand Name:
Stron smart
Certification:
IEC
Model Number:
ST-HHU

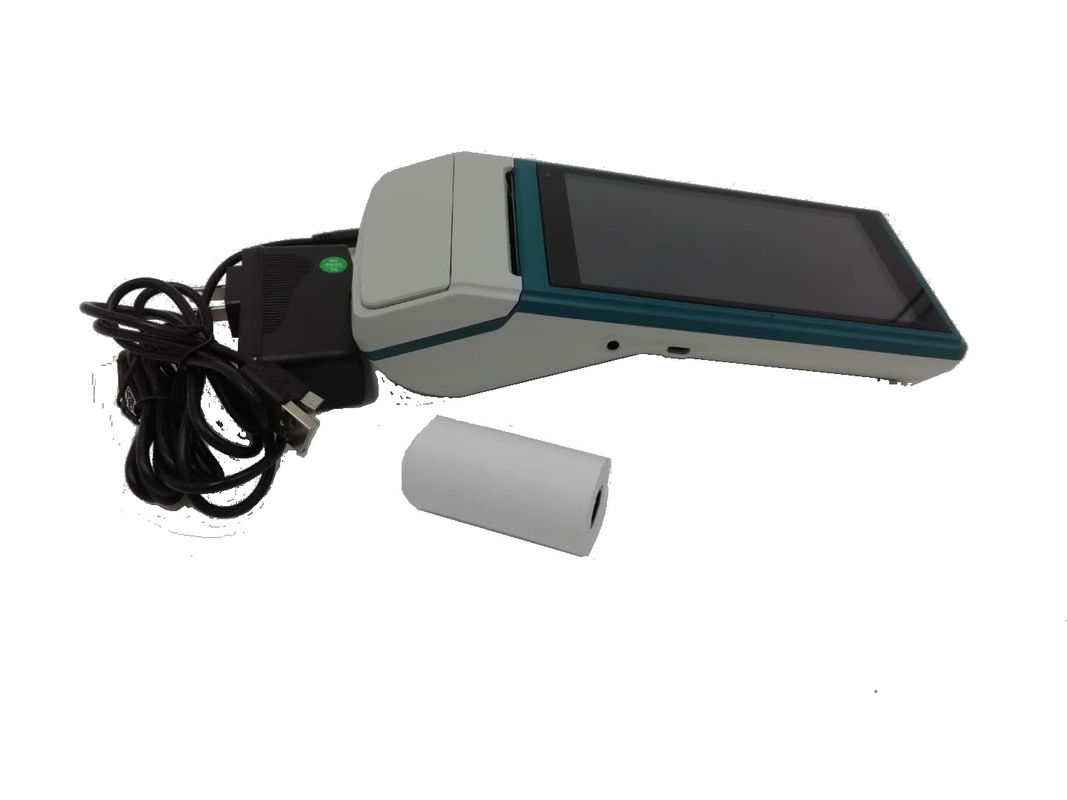

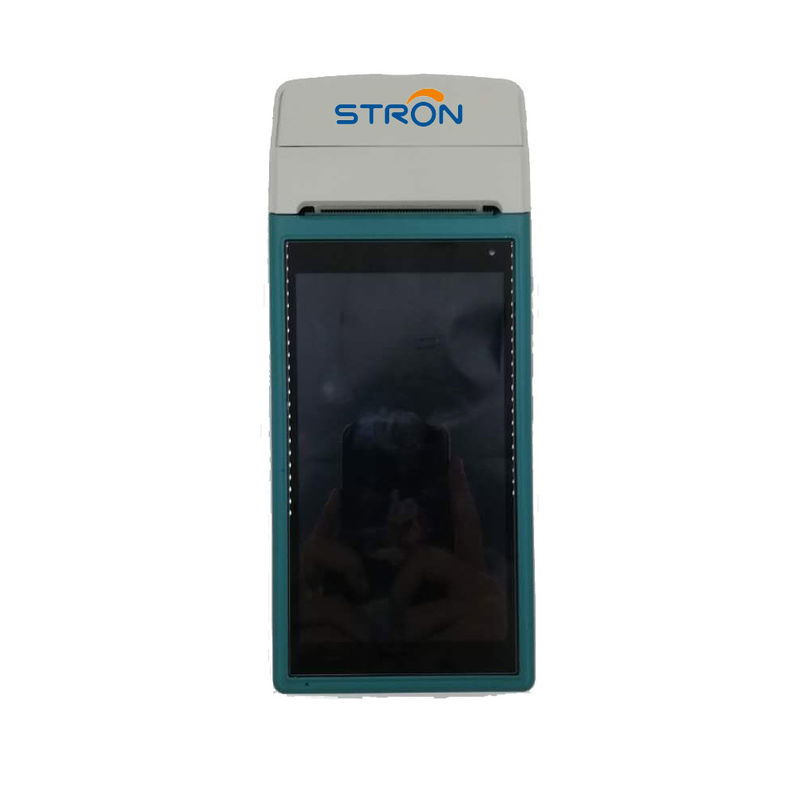

ST-HHU18 Handheld Meter Reading Unit
ST-HHU18 hand-held meter reading machine is a kind of intelligent equipment for remote water meter reading, electricity meter and gas meter.
ST-HHU18 uses advanced technology, excellent quality, reliable performance and is available in a variety of models for your specific business applications.
Main Features:
a. Adopt Microsoft Windows CE operating system;
b. DLMS/COSEM standard compliant;
c. Upload data to head-end AMR/AMI system via USB port;
d. Mass storage memory;
e. Data collection include total consumption/ historical daily & monthly consumption;
f. Meter parameter/ status/ Real-time data reading.
HHU Parameters:
OS |
Microsoft Windows CE |
CPU |
ARM926E |
Memory |
128M RAM+ 256M FLASH |
Display |
2.8’’ LCD 320x240 pixel touchpad |
Network |
WIFI / Bluetooth / LORA |
Built-in Infrared Port |
Far distance optical port |
Physical Interface |
USB |
Camera |
1.3 million pixel |
Data Backup |
TF extend |
Battery |
4400mAH chargeableLithium-ion battery |
Protection Class |
IP65 |
Operation Temperature |
-20℃-+50℃ |
Dimension |
150x71x35mm |
Weight |
0.4KG |
Top-up way:
Send your inquiry directly to us
