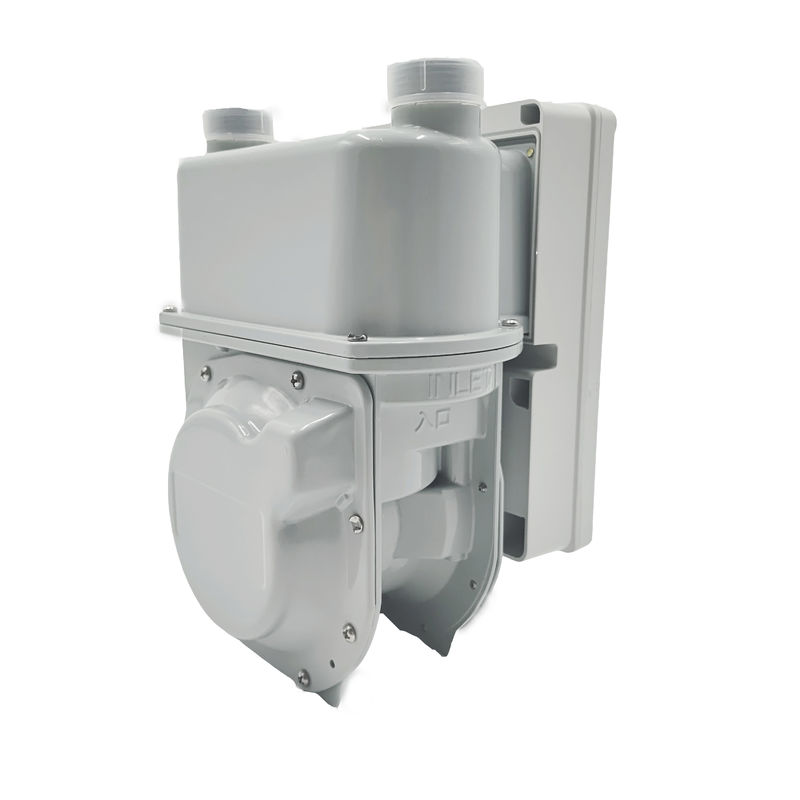

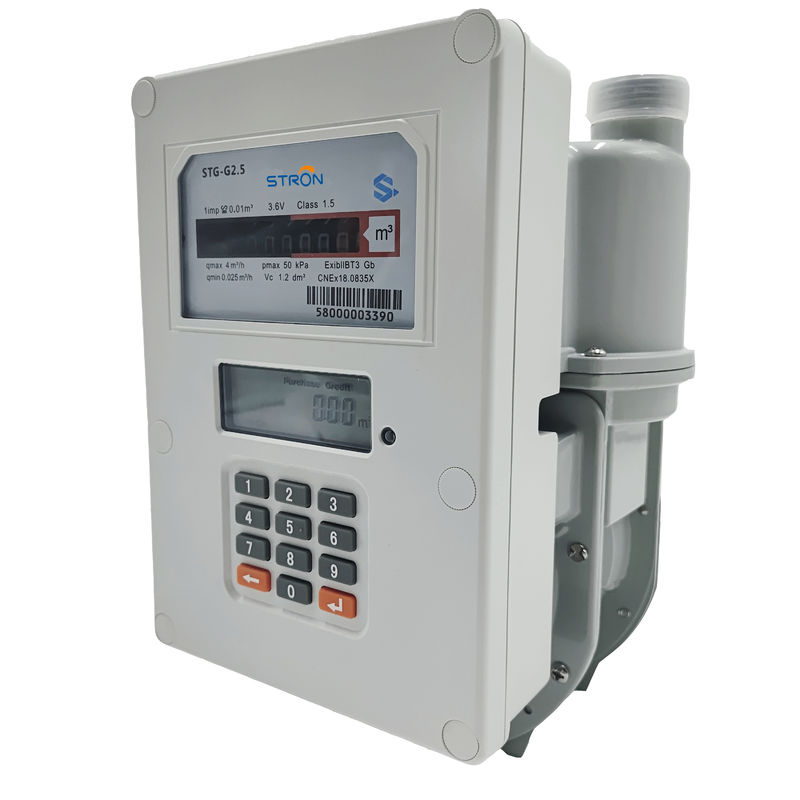

Anti-tamper Keypad Prepaid gas meter with free vending software and AMI system
Our gas meter is an STS Standard compliant, with real-time clock, Anti-Tamper Functions,with free vending software and AMI system prepaid gas meter. Our gas meter can be top up with Stronpay vending software directly and communicate with AMI system via LORA-RF. Stronpay vending software could be integrated to local Mobile Money Payment Platform like M-PESA, Alipay, MTN, Airtel, etc.
In some areas, gas theft is common, and suppliers lose a lot of money because they use more gas and pay less.Therefore, with the anti-Tamper function, the valve is closed remotely when a magnetic field is felt or the lid is opened.Only after submitting the information and selling the gas, a user receives a token to cancel the stolen gas and inputs it on the keyboard can remotely open the valve and continue to use it.This also makes it convenient for suppliers to manage users and monitor gas meters.
API: Application Program Interface, which is the agreement connecting the third party APP and our Stronpay vending software.Therefore, users can use API access when they want to use the local payment platform. The API can be used via a mobile phone. Therefore, it will be more convenient for users and expand the range of products.
The advantages to recharge with mobile payment:
✽ Users can top up gas by mobile money without leaving the house.
✽ Users could check information by their telephone.
✽It helps utilities for Revenue protection and consumer management.
Features:
1. Automatic valve controlling;
2. Ingress protection IP67 waterproof；
3. Up to 6 years battery life;
4. STS Standard;
5. Real-time clock;
6. Utilities can set step price into meter on request;
7. Anti-tamper Magnetic field protection;
8. LORA-RF communication (optional);
9. Pay by mobile payment M-PESA, Alipay, MTN, Airtel, etc.
Metrological Parameters of different size
| Size |
G1.6 |
G2.5 |
G4 |
| Nominal Flow Rate |
1.6 m3/h |
2.5 m3/h |
4 m3/h |
| Maximum Flow Rate |
2.5 m3/h |
4 m3/h |
6 m3/h |
| Minimum Flow Rate |
0.016 m3/h |
0.025 m3/h |
0.04 m3/h |
| Cyclic Volume |
0.7dm3 |
1.2 dm3 |
2 dm3 |
| Maximum working pressure |
0.7 Bar |
0.7 Bar |
0.7 Bar |
| Pressure loss |
<200 Pa |
<200 Pa |
<200 Pa |
| Maximum reading |
99999 |
99999 |
99999 |
| Working temperature |
-20-50℃ |
-20-50℃ |
-20-50℃ |
| Storage Temperature |
-30-60℃ |
-30-60℃ |
-30-60℃ |
|
Error: Qmin≦Q≦0.1Qmax
0.1Qmax≦Q≦Qmax
|
±3 |
±3 |
±3 |
| ±1.5 |
±1.5 |
±1.5 |
Meter Dimension
