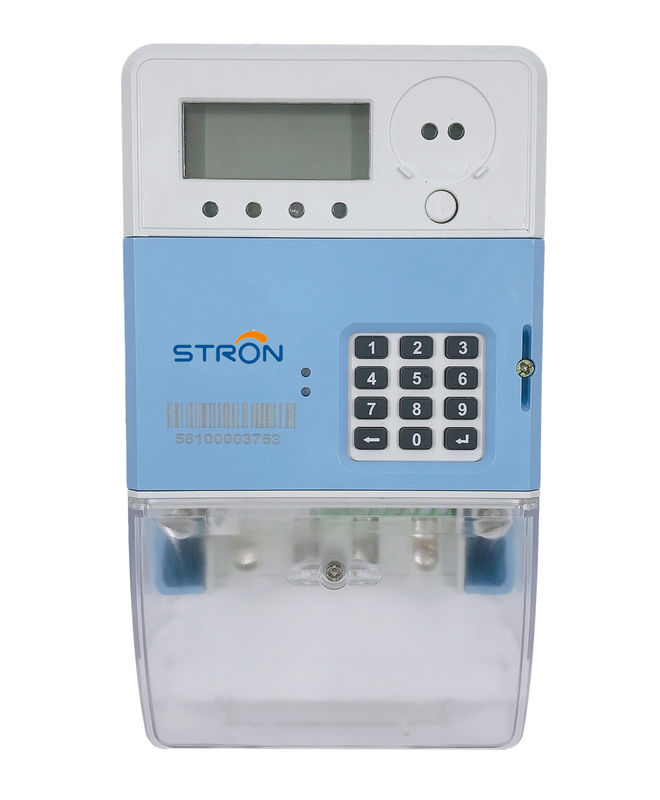

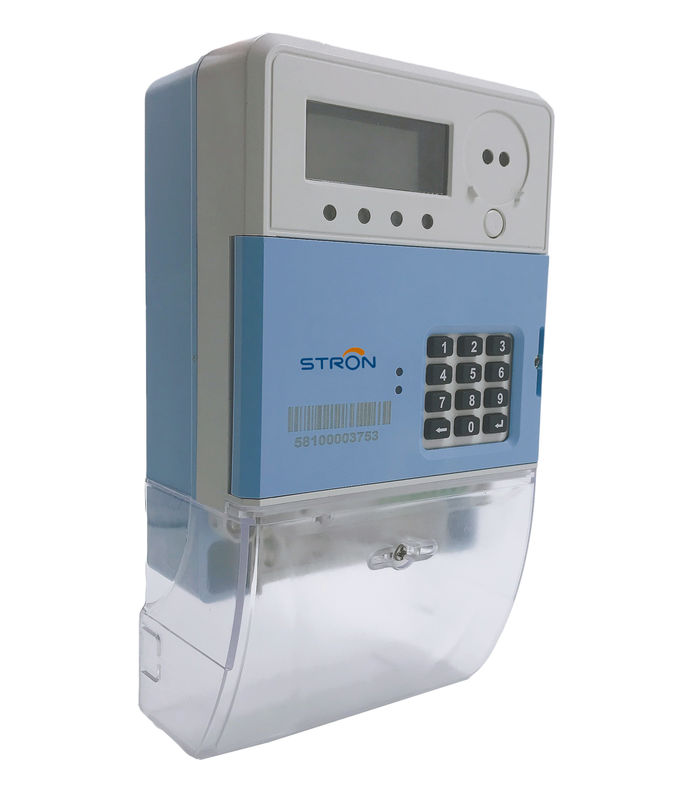

Keypad Type STS Standard Pre-payment GPRS/RF/PLC Module Slot Intelligent Single Phase Electric Power Meter
STE18-G is STS standard keypad single phase electricity meter with a plug-in module for STS compliant data collection and network communications. This modular design enables utility to select from PLC/RF/GPRS according to local conditions. Upgrade and maintenance will also become cost-effective by replacing the modules only instead of the entire meter.
Meter can be top up with Stronpay vending software directly, or integrated our vending with local mobile payment via API. People can recharge with mobile phone without leaving their house. It allso can communicate with AMI system with GPRS module or LORA-RF/PLC module and DCU directly. Utilities can read, control and recharge the meter remotely.
User Benifit
☀ Easy connection to User Interface Unit (UIU) for split type applications.
☀ PLC/ RF / GPRS wireless communication with a head-end AMR/AMI server.
☀ Time of Use (TOU), multi-tariff, holiday setting.
☀ Advanced load control and disconnection features.
Electrical Parameters
➯Nominal Voltage: 230V
➯Working Voltage Range: 70%~120%Un
➯Nominal Frequency: 50-60Hz
➯Basic Current (Ib): 5A
➯Maximum Current (Imax): 80A
➯Starting Current (Ist): 20mA
➯Active Energy Constant: 1000imp/kWh
➯Measurement Accuracy: Class 1.0
➯Power Consumption in Voltage Circuit: <2W <8VA
➯Power Consumption in Current Circuit: <1VA
➯Operation Temperature Range: -25℃-70℃
➯Storage Temperature Range: -40℃-85℃
Electric Magnetic Compatibility
➯AC Insulation Strength: 4kV at 50Hz during 1min
➯Impulse voltage 1.2/50 us mains connections: 8kV
➯Electrostatic Discharges:
a. Contact discharge: 8kV
b. Air discharge: 16kV
➯Electromagnetic RF Field:
a. 27MHz-500MHz: 10V/m
b. 100KHz-1GHz: 30V/m
➯Fast transient burst test: 4kV
➯Protection: Class II
Main Features
① 20 digit (Standard Transfer Specification) STS encryption
② Detection of significant reverse energy (SRE)
③ IEC62056-21 compliant port allowing for easy data interrogation
④ Disconnects on overload and no credit
⑤ Programmable load limit and low credit warning
⑥ Detection and record tamper event such as cover open, reversal, black-out, etc.
⑦ Easy access to 12 months historical consumption data and last 5 token entered.

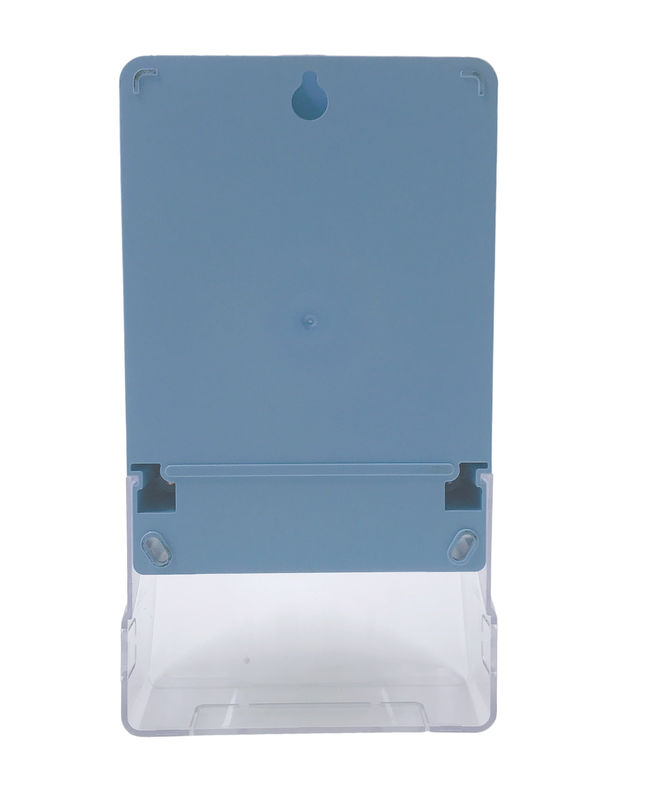

Meter Dimension
Basic Functionality:
| Function |
Details |
| Prepayment |
STS Standard, recharge by input 20digits TOKEN |
| Low credit alarm |
Alarm value can be set by inputting corresponding TOKEN |
| Prepaid and post-paid switch |
Meter can be switch to prepaid mode or post-paid mode |
| Load control function |
Meter can be programmed for load control threshold, If the current power is more than threshold. The meter will cut off user load. |
| Event recording |
Meter can record the tamper event, open cover event, purchase event and TOKENS. |
| Self-testing |
Meter has a self-test function, it can test LCD and relay etc. and report the results directly |
| Anti-tamper |
Meter will automatically close the valve after detection of magnetic field and open cover event |
| TOU Tariff |
TOU Tariff can be set by inputting corresponding TOKEN |
| Overdraft Collection |
Electricity Overdraft can be collected day by day or month by month |
| Communication |
The meter is available with AMI system through GPRS/PLC/LORA-RF module. |
| Information Inquiry |
Consumer could check the data like Credit Remain, Total Purchased and Total Credit by input the short code |
Vending Process
1. By Stronpay vending Software
➯ Via local sales point or handheld mobile vending unit
Vending Process
☀ Login the web-based vending website by inputting the user name, company name and password.
☀ Register the meter number and customer information at the library center.
☀ Set the price for different customers
☀ Open an account to combine the meter,customer and price information
☀ Get the Token at the Top up center.
☀ Input the Token with keypad.
☀ Recharging completely.
2. By the third party platform or local mobile payment with API
➪ Via mobile phone
API: Application Program Interface, which is the agreement connecting the third party APP and our
Stronpay vending software.
The advantages to recharge with mobile payment:
✽ Users can top up electricity by mobile money without leaving the house.
✽ Users could check information by their telephone.
✽ It helps utilities for Revenue protection and consumer.
3. By the AMI SystemAMI System consist of Smart Meters, Communication systems and equipment, Meter Database Management System.
It can realize access, configuration, and control of various remote data; supports various electricity prices, analysis of electricity usage to lead self-conscious energy-saving, load control of remote user, automatic response; malfunction frame testing and remote connect/disconnect control, optimization of load forecast, and power quality, etc.
➪ Recharge remotely via DCU and LORA-RF or PLC module
