| Place of Origin: | Hunan |
| Brand Name: | Stron |
| Certification: | STS |
| Model Number: | STW36-M |
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | Negotiable |
| Delivery Time: | 30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 set per month |
| Type: | Woltman Water Meter | Material: | Brass |
|---|---|---|---|
| Size: | DN15-DN600 | Keyword: | Flow Meter |
| Feature: | Accuracy,Remote Pulse | Protection Level: | IP68 |
| High Light: | DN50 woltman type water meter,anti tamper woltman type water meter,DN50 prepaid water metres |
||

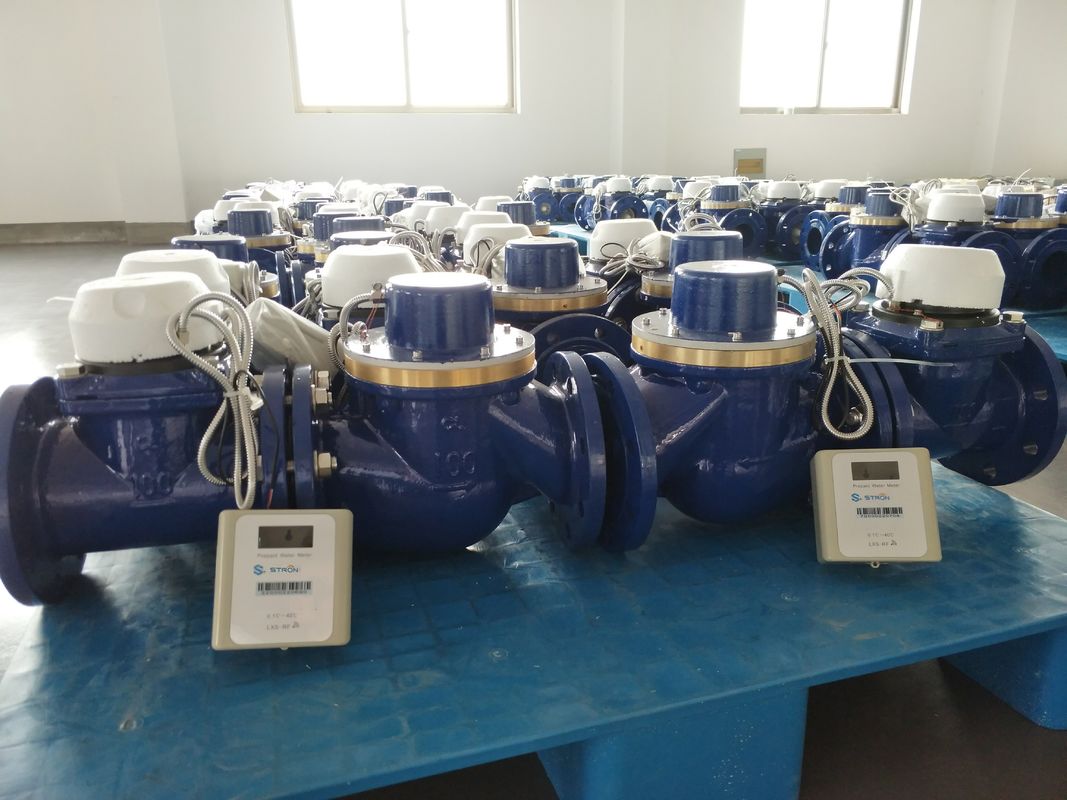

STW36-M Woltman Prepaid Bulk Water Meter Irrigation Water Saving Remote Control

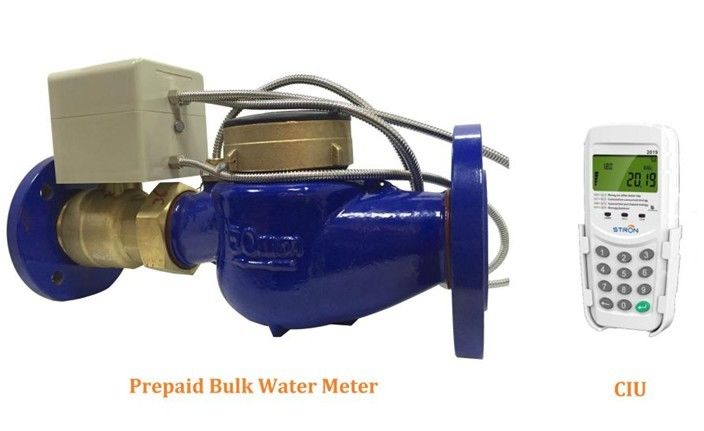

STW36-M is developed on basis of dry type Waltman Bulk water meter, electronic board with STS (Standard Transfer Specification) compliant prepayment, diaphragm pilot-actuated valve controller. It is composed of a prepaid water bulk meter and a separate customer interface unit (CIU) with LORA-RF wireless communication module. They are available to communicate with AMI system for data transmission.
Basic Functions
✽ Muti-jet Dry dial register construction
✽ Low Power Consumption
✽ Programmable low credit warning
✽ Recharge by customer interface unit(CIU)
✽ Brass / plastic meter body on request
✽ Non- return valve preventing back-flow
LORA-RF wireless communication optional can be read or controlled by our AMI server, customer can check data and parameters they need, like monthly consumption, daily consumption, meter status. Service provider can close the valve remotely, Effectively prevent users from not paying water charges, Monitor customer's water consumption at any time.
Anti-Tamper:
Meter will automatically close the valve after detection of magnetic field and open cover event.
Information Inquiry:
Consumer could check the data like Credit Remain, Total Purchased and Total Credit by LCD Display.
Step Tariff:
Step Tariff can be set by Management Card. Utilities can set step price on request.
Advantages:
l Valve body with self-support type pilot-actuated structure, leading valve can be opened without very large torsion, primary valve starts relying on the water pressure of, eliminating the need for large power in the well.
l Specialized quality controller for contactless IC card smart water meter.
l Radio frequency card, high security, resistant to wear and magnetic interference, waterproofing and anti-decryption.
l Dual indication feature of mechanical metering and electronic metering.
l Patented waterproofing technology, up to domestic top-level.
l Stepped tariffs available.
l Ultra low power consumption to extend the meter's life span.
l Allows large qty through flow, small pressure loss, resistant to water hammer and impurities and contaminant.
l Closes valve when remaining water volume lower than set alarm volume, indicating alarm info.
Metrological Parameters
Meter Dimension
