Name: 15W 50V Poe Power Adapter Household Electrical Devices
Brand: Stron

15W 50V Poe Power Adapter Household Electrical Devices

Product Details:

Place of Origin:	Hunan
Brand Name:	Stron

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	Negotiable
Delivery Time:	14 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	2000 set per month

Contact Now

Detailed Product Description

Material:	Plastic	DC Output:	Various
Power:	Various	WORKING TEMP.:	0℃～40℃
Warrenty:	3 Years	Protection:	Short Circuit / Overload / Surge
High Light:	15W poe power adapter , 50V poe power adapter , 50V Household Electrical Devices

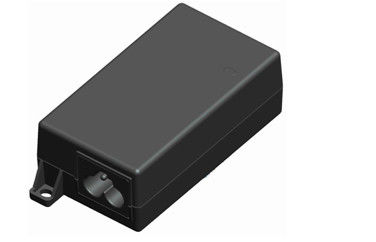

15W Desktop POE Power Supply 100M +(4,5)pins; -(7,8)pins Power Over Ethernet

Features :

·Universal AC input / Full range

·100M Ethernet ports support

·+(4,5)pins; -(7,8)pins

·Forced the power into Ethernet ports

·Protections: Short circuit / Overload / Surge

·100% full load burn-in test

·No load consumption<0.1W@230VAC

·3 years warranty

SPECIFICATION

MODEL		PHOB15D01-240060	PHOB15D01-500030	PHOB15D01-560027
OUTPUT	DC VOLTAGE	24V	50V	56V
	RATED CURRENT	0.6A	0.3A	0.27A
	RATED POWER	14.4W	15W	15.12W
	RIPPLE & NOISE (max.)	200mVp-p	200mVp-p	200mVp-p
	VOLTAGE TOLERANCE	±5%	±5%	±5%
INPUT	VOLTAGE RANGE	90～264Vac
	FREQUENCY RANGE	47～63Hz
	EFFICIENCY (Typ.)	83.92%(Meet DOE Ⅵ)	84.13%(Meet DOE Ⅵ)	84.17%(Meet DOE Ⅵ)
	AC CURRENT (Typ.)	0.35A max @100～240Vac
	INRUSH CURRENT (Typ.)	COLD START 40A/100Vac 60A/240Vac
PROTECTION	OVERLOAD	120～200% rated output power
		Protection type : Hiccup mode, recovers automatically after fault condition is removed
	Short circuit	Protection type : Hiccup mode, recovers automatically after fault condition is removed
	Lightning Surge	L-N 6KV ; L&N-PE 6KV
ENVIRONMENT	WORKING TEMP.	0℃～40℃
	WORKING HUMIDITY	20%～95% RH non-condensing
	STORAGE TEMP., HUMIDITY	-20℃～70℃ , 20%～95% RH
	VIBRATION	10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC	SAFETY STANDARDS	UL60950-1, CB(IEC60950-1)
	EMI CONDUCTION & RADIATION	EN55022, EN55024, FCC Part 15 Class B, GB9254, GB17625.1ect.
OTHERS	MTBF	50000hrs min. MIL-HDBK-217F(40℃)
DIMENSION
